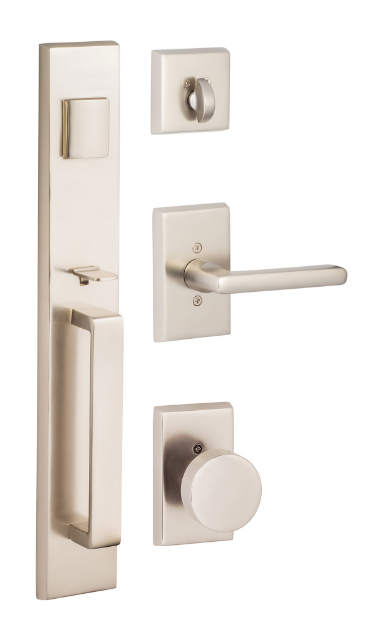

Vail Handleset

Description

Finishes

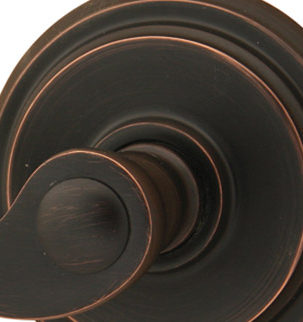

• Vintage Bronze
• Nickel

DoorHanding

• Non-handed

Strike Plate

• 2-1/4″ x 1-3/4″ fill-lip radius corner standard
• 2-1/4″ x 1″ deadbolt strike
• 2-3/4 x 1-1/8″ deadbolt strike

Latch

• 2-1/4″ 1″ radius corner faceplate
• Non-adjustable 2-3/8″ or 2-3/4″ backset
• 2-3/8 drive in latch available
• 1/2″ throw bolt
• Split Spindle-both sides operate independently
• 1″ deadbolt throw
• Cut resistant bolt with hardened steel rolling insert

Door Thickness

• 1-3/8″ –  2″
• Expansion pack available for 2-1/4″ thick doors

Door Prep

• Crossbore 2-1/8″
• Edgebore 1″
• 5-1/2″ center-to-center

Key Cylinder

• 5 Pin KW1
• 5 Pin SC1 option

Materials

• Solid Brass
• All metal parts

Additional information
